Polyester core conveyor belt

Steep Angle Sidewall Conveyor Belts

Acid-alkali Resistant Conveyor Belt

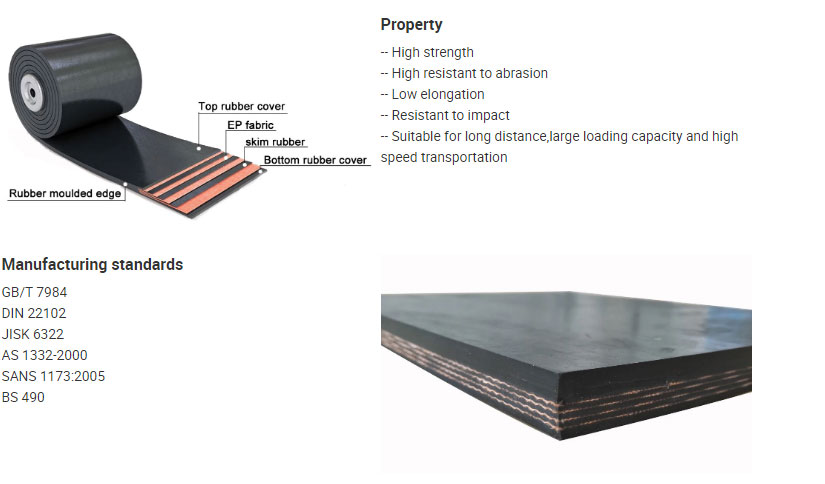

The EP rubber conveyor belt is made of multiple layers of polyester canvas in a certain way, and it is a wear-resistant rubber with high elasticity. It is used to transport small and medium-sized pieces, powders, granules and other materials without special corrosion. It is suitable for conveying ma

Message

Telephone

86-13373390777

Hot product

1. Physical properties

Grade of covering rubber	Item	Tensile Strength		Elongation at break ≥ %	Abrasion ≤ (mm3)
Grade of covering rubber	Item	Mpa	Kgf/cm2	Elongation at break ≥ %	Abrasion ≤ (mm3)
Laceration resistant type	H	24	240	450	120
Abrasion resistant type	D	18	180	400	100
Ordinary type	L	15	150	350	200

2. Interlayer adhesion strength

Item	Between the fabric layers	Between cover rubber and Fabric
Item	Between the fabric layers	Cover rubber thickness 0.8-1.5mm	Cover rubber thickness ≥1.5mm
Average Value of all samples N/mm	≥4.5	3.2	3.5
Lowest Peak Value of all samples	≥3.9	2.4	2.9
Remark: Highest Peak value of all samples not more than 20N/mm

3. Standard

Standard & Grade	Minimum Tensile Strength (Mpa)	Minimum Elongation at Break (%)	Maximum Abrasion Loss (mm³)
DIN - X	25	450	120
AS - M	24	450	125
IS - M24	24	450	150
BS - M24	24	450	150
SANS - M	24	450	120
SANS - N	20	400	150
DIN - Y	20	400	150
AS - N	17	400	200
IS - N17	17	400	200
BS - N17	17	400	150
RMA 1	17	450	150
JIS - S	18	450	200
