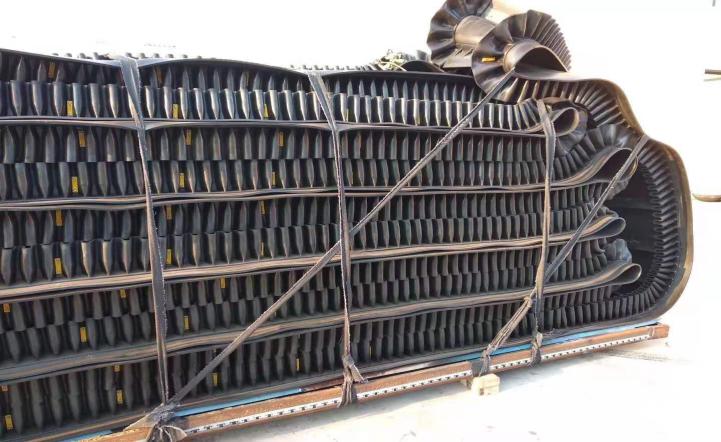

Steep Angle Sidewall Conveyor Belts

Steep angle sidewall conveyor belts is normally used together with sidewall conveyor belts, transporting angle≥30°. It also used together with belt conveyor for horizontal & short-distance transportation. (no cleats the moment)The belt is twice vulcanized through base belt (trough degree≤0.03

Message

Telephone

86-13373390777

Hot product

The belt is twice vulcanized through base belt (trough degree≤0.03), sidewall, cleat (no cleat needed when horizontal transportation).

Comparing with bonding belt with same type, Twice-vulcanized belt has the following characteristics: high bonding strength, good flexibility, less cracking & falling of sidewall and cleat, longer working life.

Matching parameter of base belt width, sidewall height, etc.mm

Base belt width B	Sidewall height H	Cleat height H1	Sidewall bottom width B1	Effective belt width B2	Free zone width B3	Cleat shape
300	40	35	25	180	35	TC
	60	55	50	120	40
	80	75
400	60	55	50	180	60	TC
	80	75
	100	90
500	80	75	50	250	75	TC
	100	90
	120	110
650	100	90	50	350	100	TC
	120	110
	160	140	75	300
800	120	110	50	460	120	TC
	160	140	75	410
	200	180
1000	160	140	75	550	150	TC
	200	180
	240	220
1200	160	140	75	690	180	TC
	200	180
	240	220
	300	260	100	640
1400	200	180	75	830	210	TC

Standard

Standard & Grade	Minimum Tensile Strength (Mpa)	Minimum Elongation at Break (%)	Maximum Abrasion Loss (mm³)
DIN - X	25	450	120
AS - M	24	450	125
IS - M24	24	450	150
BS - M24	24	450	150
SANS - M	24	450	120
SANS - N	20	400	150
DIN - Y	20	400	150
AS - N	17	400	200
IS - N17	17	400	200
BS - N17	17	400	150
RMA 1	17	450	150
JIS - S	18	450	200
