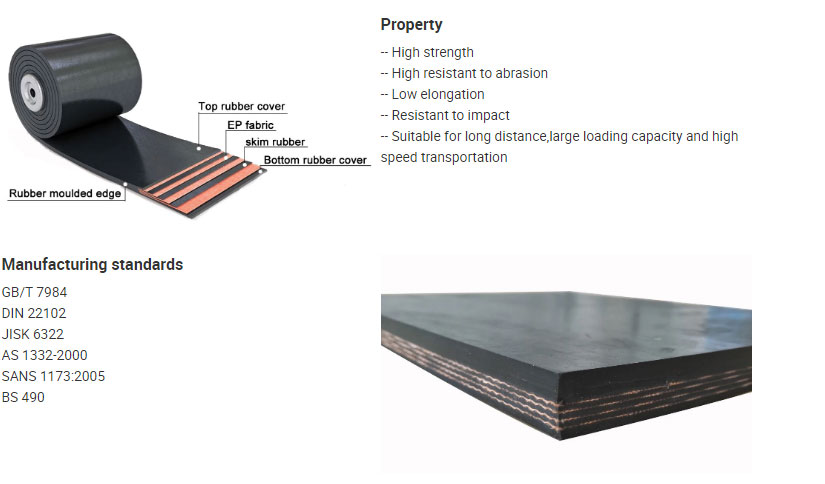

The EP rubber conveyor belt is made of multiple layers of polyester canvas in a certain way, and it is a wear-resistant rubber with high elasticity. It is used to transport small and medium-sized pieces, powders, granules and other materials without special corrosion. It is suitable for conveying materials in medium and long distance, high capacity and high speed circumstances.
1. Physical properties
Grade of covering rubber | Item | Tensile Strength | Elongation at break ≥ % | Abrasion ≤ (mm3) | |
Mpa | Kgf/cm2 | ||||
Laceration resistant type | H | 24 | 240 | 450 | 120 |
Abrasion resistant type | D | 18 | 180 | 400 | 100 |
Ordinary type | L | 15 | 150 | 350 | 200 |
2. Interlayer adhesion strength
Item |
Between the fabric layers | Between cover rubber and Fabric | |
Cover rubber thickness 0.8-1.5mm | Cover rubber thickness ≥1.5mm | ||
Average Value of all samples N/mm | ≥4.5 | 3.2 | 3.5 |
Lowest Peak Value of all samples |
≥3.9 |
2.4 |
2.9 |
Remark: Highest Peak value of all samples not more than 20N/mm | |||
3. Types:
Product | Rubber conveyor belt |
Type | Ordinary type, Heat resistant type, Flame retardant, Cold Resistant, Chemical resistant, Oil resistant etc. |
Width | 100mm-1600mm |
Belt layer | 2-8 |
Top Cover rubber | 1.5-9mm |
Bottom cover rubber | 0-4.5mm |
Belt material (Polyester) | EP100, EP150, EP200, EP250, EP300, EP400 |
Application | Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other industries. |
Advantage | High tensile strength, Low Elongation, Good Flexibility, oil &heat & cold & Flame & chemical & impact & wear resistant |
